Art. 4701
These high performance nozzle mix type torches are largely safe against flashbacks and can be used with any fuel gas (acetylene, propane, natural gas) - only the nozzles have to be changed. These torches are designed for high performance and long life.
The GARANT cutting torch is also available in overlenghts (600 mm, 700 mm etc.) and on request with 90° or 120° heads.
Download files
Products
- Art. 4701

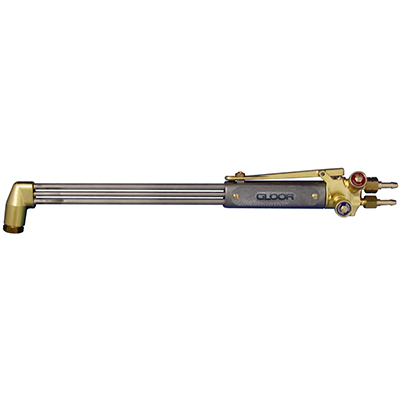

GARANT cutting torch, robust and attractive design with stainless steel
tubes, cutting range up to 300 mm. With lockable oxygen lever, total length including handle 500 mm, 100° head.
- Art. 4702
Roller guide
- Art. 4403
Circle cutting attachment with adjustable point for circle cuts
up to 820 mm diameter
- Art. 4301
3-tube cutting attachment, fits handle Art. 3601, cutting
range up to 200 mm Art. 4301
Also: with stainless steel tubes, on request Art. 4301-ST
Roller guide Art. 4702
Circle cutting attachment with adjustable point for circle cuts
up to 820 mm diameter Art. 4403
Set of GARANT nozzles (10 – 100 mm) Art. 4320-A
Complete 3-tube cutting attachment
(including Art. 4301, 4702, 4403 and 4320-A) Art. 4300-A
as above, but with propane cutting nozzles Art. 4300-P
- Art. 4711 to Art. 4717 and Art. 4770 to Art. 4779
GARANT cutting nozzles, nozzle mix type, for acetylene. Cutting range:
3 – 10 mm Art. 4711 100 – 150 mm Art. 4715
10 – 25 mm Art. 4712 150 – 200 mm Art. 4716
25 – 50 mm Art. 4713 200 – 300 mm Art. 4717
50 – 100 mm Art. 4714
GARANT high performance cutting nozzles, nozzle mix type, for
acetylene, for higher cutting speed. Cutting range:
0 – 5 mm Art. 4770 40 – 50 mm Art. 4775
5 – 10 mm Art. 4771 50 – 100 mm Art. 4776
10 – 15 mm Art. 4772 100 – 150 mm Art. 4777
15 – 30 mm Art. 4773 150 – 250 mm Art. 4778
30 – 40 mm Art. 4774 250 – 300 mm Art. 4779
- Art. 4763 to Art. 4764 Art. 4731 to Art. 4737 Art. 4780 to Art. 4789
GARANT cutting nozzles, nozzle mix type, for propane, outer nozzle
copper, inner nozzle brass. Cutting range:
3 – 10 mm Art. 4731 100 – 150 mm Art. 4735
10 – 25 mm Art. 4732 150 – 200 mm Art. 4736
25 – 50 mm Art. 4733 200 – 300 mm Art. 4737
50 – 100 mm Art. 4734
GARANT high performance cutting nozzles, nozzle mix type, for propane,
for higher cutting speed. Cutting range:
0 – 5 mm Art. 4780 40 – 50 mm Art. 4785
5 – 10 mm Art. 4781 50 – 100 mm Art. 4786
10 – 15 mm Art. 4782 100 – 150 mm Art. 4787
15 – 30 mm Art. 4783 150 – 250 mm Art. 4788
30 – 40 mm Art. 4784 250 – 300 mm Art. 4789
GARANT cutting nozzle for scrap cutting, nozzle mix type, in two- pieces,
for propane
Cutting range up to 40mm Art. 4763
Cutting range up to 100mm Art. 4764
- Art. 4725 Art. 4750 Art. 4751
GARANT sheet metal cutting nozzle, cutting range 2 – 5 mm,
acetylene only Art. 4725
GARANT gouging nozzle, groove width 11 mm,
groove depth 6,5 – 11 mm, acetylene only Art. 4750
GARANT rivet cutting nozzle, acetylene only Art. 4751
