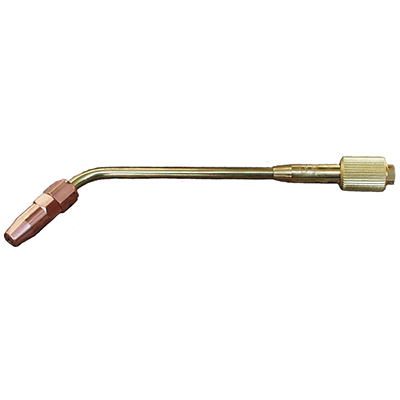

Art. 3952-A / Art. 3956-A
According to application either heating torches with brush flame (multi-hole torch) or heating torches for pointed flame (single hole torch) are used. Multi-hole torches are particularly suitable for the heating of a wide area of a working piece whereby one-hole torches are suitable for the local and precise heating of a working piece.
Download files
Products
- Art. 3952-A to Art. 3956-A
To be used with handle 3901
Heating heads for oxy-acetylene, for preheating, flame straightening etc.
for thermal output from 15000 kJ/h up to 35 000 kJ/h
Heating headno 2, head diameter 14 mm Art. 3952-A
Heating headno 4, headdiameter 18 mm Art. 3954-A
Heating headno 6, headdiameter 22 mm Art. 3956-A
- Art. 3952-P to Art. 3956-P
Heating heads for oxy-propane/natural gas, for preheating, flame
straightening etc. for thermal output from 17000 kJ/h up to 37 000 kJ/h
Heating headno 2, head diameter 11,5 mm Art. 3952-P
Heating headno 4, headdiameter 12,5 mm Art. 3954-P
Heating headno 6, headdiameter 13,5 mm Art. 3956-P
- Art. 3976
Brush-flame melting and heating head for fuelgas and oxygen.
Very large action area of the flame.
Brush-flame heating head for acetylene - oxygen Art. 3976-A
Brush-flame heating head for propane - oxygen Art. 3976-P
- Art. 3961 to Art. 3964
Melting- and heating head for propane/natural gas and compressed air.
With very stable brush- or pointed flame for precise soldering and melting.
Maximum flame temperature 1875°C.
Melting- and heating head No 1 Art. 3961
Melting- and heating head No 2 Art. 3962
Melting- and heating head No 3 Art. 3963
Melting- and heating head No 4 Art. 3964
- Art. 3654-A to Art. 3660-A
To be used with handle 3601
Heating heads for oxy-acetylene, for preheating, flame straightening etc.,
for thermal output from 17650 kJ/h up to 141 500 kJ/h
Heating head no 4, head diameter 18 mm Art. 3654-A
Heating head no 6, head diameter 22 mm Art. 3656-A
Heating head no 8, head diameter 26 mm Art. 3658-A
Heating head no 10, head diameter 26 mm Art. 3660-A
- Art. 3654-P to Art. 3664-P
Heating heads for oxy-propane/natural gas, for preheating, flame
straightening etc., for thermal output from 17000 kJ/h up to 163 500 kJ/h
Heating head no 4, head diameter 12,5 mm Art. 3654-P
Heating head no 6, head diameter 13,5 mm Art. 3656-P
Heating head no 8, head diameter 15,5 mm Art. 3658-P
Heating head no 10, head diameter 18,5 mm (propane only) Art. 3660-P
Heating head no 12, head diameter 23 mm (propane only) Art. 3662-P
Heating head no 14, head diameter 26 mm (propane only) Art. 3664-P
- Art. 3692 to Art. 3694
Heating head for propane-oxygen with pointed flame for concentrated
isolated heating up of workpiece
Heating head for propane-oxygen with pointed flame no 2 Art. 3692
Heating head for propane-oxygen with pointed flame no 3 Art. 3693
Heating head for propane-oxygen with pointed flame no 4 Art. 3694
