Art. 6800

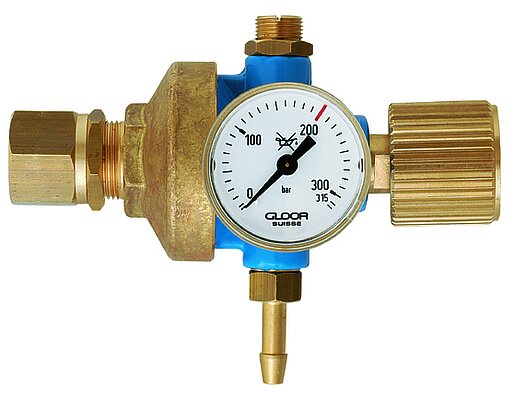

Pressure regulator with high pressure gauge (diameter 40 mm) for the indication of the cylinder content. With preset working pressure up to 8 bar (upon request). Integral safety valve.
Download files
Technical Data
- Connection
screw connector for cylinder
- Outlet
fixed hose connectors 5, 6 or 8 mm
- Gases
C, DL, H, HE, N, O, AR
- Inlet pressure
200 bar
- Working pressure
bis 8 bar (fest eingestellt)
- Flow rate
17 (Nm3/h)
