Art. 7850

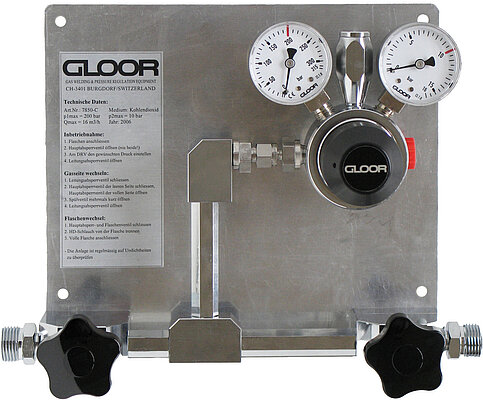

Manual change-over switching station for gases with purity up to 6.0. The change-over switching station consists in the standard version of two high pressure shut-off valves for alternate cylinder operation and a main pressure regulator with safety valve. As option also available with Swagelok shutoff valve for cutting-ring union on useful outlet and on purging outlet (here with additional angle piece). Another option is the version with integrated purging outlets on the high pressure shut-off valves. Due to the modular construction, the change-over switching station can be supplied according to customer requirements.
All parts fixed on an aluminium baseplate with specific gas identification and with notes for correct operation.
Download files
Technical Data
- Inlet pressure
200 bar
- Outlet pressure
0-4, 0-6 or 0-10 bar
- Flow rate
12 m3/h (4 bar), 14 m3/h (6 bar), resp.16 m3/h (10 bar)
back pressure increase: max. 0.7 bar (at p2=10 bar)
- Gases
all pure gases and gas mixtures with exception of
corrosive gases
- Inlet
non combustible gases 3/4" R
combustible gases 3/4" L
- Outlet
useful outlet and purging outlet : G 1/4" female
- Material
body brass, outer parts chrome-plated
diaphragm : stainless steel with O-ring sealing
sealing material : polyamide (PA 6), flat seal
- Operating temperatures
- 20°C to +60°C
- Leaking rate helium
< 1 * 10 E-8 mbar * l * s-1
- Weight
4.1 kg
