Art. 8934-W

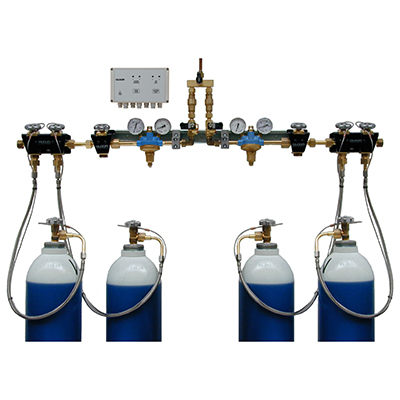

An extremely flexible modular system permits individual attention to user requirements. The individual modules of the cylinder batteries can be combined according to the client’s wishes and where required, supplemented with manual or automatic change-over switching stations. The modular system enables consideration to be given to the on-site space conditions and also the possibility for a retrospective installation expansion. As the individual modules are assembled on-site, transporting the individual parts presents no problems. The batteries can be supplied in version for cylinders with a filling pressure of 200 or 300 bar.
Single cylinder station
For connecting a cylinder or a cylinder rack using a high pressure hose. Outlet optionally left (-L) or right (-R). With integrated sinter filter and device for wall mounting. Optionally also available with backflow valve. (Art. 8934-W andArt. 8924-W)
Same as above, but for mounting on C-rail (when using with change-over switching station) (Art. 8934 and Art. 8924)
Master manifold valve
The master manifold valve is mounted between the change-over switching station and the collector station. Its function is to shut off the entire gas flow of this side. Outlet optionally left (-L) or right (-R). Including device for wall mounting.(Art. 8931-W and Art. 8921-W)
Collector station
For connecting two cylinders using high pressure hoses. Consisting of two shut-off valves, integrated sinter filter and device for wall mounting. Optionally also available with backflow valve. Can be used for both flow directions. (Art. 8932 and Art. 8922)
Additional cylinder station
Same construction as Art.8932 or Art.8922, but only for one cylinder (e.g. for the extension of a collector station to a battery for 3 cylinders). (Art. 8933 and Art. 8923)
Connecting tube
For combining the above components (i.e. master manifold valve, collector station and additional cylinder station). Depending on space requirements and desired placement of cylinders, the short (60 mm, Art.89263) or the long version (400 mm, Art.89264) is used. The connecting tube is supplied with connecting nuts W21.8x1/14" resp. for fuel gases W21.8x1/14" L on both sides.
Accessories
Blanking screw : for blanking off the cylinder battery, consisting of locking cone and connecting nut. (Art.79365-K-R and Art.79365-K-L)
Instead of the blanking screw, a purging valve can be installed as an option for relieving the pressure or for purging the cylinder battery when changing the cylinders. The purging valve has an outlet with ¼“ female thread (flat sealing) where a vent pipe can be connected or a sinter filter (Art.78608 ) for the absorbing of the venting noises can be installed. (Art.662248-MS-R and Art.662248-MS-L)
