Art. 7955-1-20
The application of the low pressure take-off stations is mainly found where a high flowrate is required from a central gas supply system.

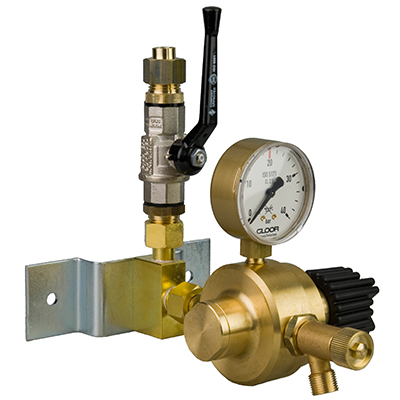

The low pressure take-off stations consist of a wall bracket, a ball-stop valve, a valve block and a on-built low pressure regulator. The take-off stations are available in versions for one or two gases. The in-built diaphragm pressure regulators stand out for a high flowrate and a high pressure constancy.
Due to the compact construction of the regulator, the take-off stations are very robust and not susceptible to breakdowns.
The take-off stations are also available in versions for oxygen (ignition text for oxygen by BAM). The take-off stations are availabe in versions for working pressure up to 1.5, 6, 20 and 40 bar.
Download files
Technical Data
- Inlet pressure
max. 40 bar
- Outlet pressure
0 - 1.5 bar, 0 - 6 bar, 0 - 20 bar, 0 - 40 bar
- Maximum flowrate
200 m3/h (s. flow charts)
- Gases
all gases and gas mixtures except corrosive and poisonous gases
- Inlet
soldering nipple Ø12 mm (other inlets on request)
- Outlet
3/8“ R for non combustible gases, 3/8“ L for combustible gases
- Material
body brass, diaphragm NBR, sealing material NBR, EPDM, FKM,
PA6 and POM, filter disc 1.4401, bracket in galvanized steel.
- Operating temperature
-20 up to + 60C°
- Weight
2.9 kg (single version 20 bar), 3.2 kg (single version 1,5, 6 and 40 bar)
