Art. 5600
Universally applicable pipeline regulator for the precise regulation of the working pressure at the workplace. With sintered filter made of chrome nickel steel in the inlet; diaphragm and valve seat made of NBR.
Download files
Products
- Art. 5600

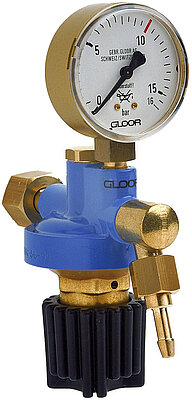

Low pressure regulator with gauge (diameter 63 mm) and pressure adjusting
screw for the precise regulation of the working pressure.
Connection: screw connector 1/2" R or L, alternatively 3/8” R or L
Outlet: hose connector 3/8”, 1/4”
Gases: A, AR, C, DL, H, HE, M, NH, NO, N,O, P and mixtures
Art. No. 5600 compressed air
Inlet pressure (bar) max. 40
Working pressure (bar) 0–10
Flow rate (Nm3/h) 20
Also available with working pressure up to 1.5 bar.
- Art. 5610
Low pressure regulator for higher delivery rates, with gauge and adjusting
screw for regulating the working pressure.
Connection: screw connector 1/2" R or L, alternatively 3/8” R or L
Outlet: screw connector 3/8”, 1/4”
Gases: AR, C, DL, H, HE, M, NH, NO, N,O, P and mixtures
Art. No. 5610 compressed air
Inlet pressure (bar) max. 40
Working pressure (bar) 0–6
Flow rate (Nm3/h) 30
- Art. 5620
Low pressure regulator for higher working pressures, with gauge and
adjusting screw for the regulation of the working pressure.
Connection: screw connector 1/2" R or L, alternatively 3/8” R or L
Outlet: screw connector 3/8”, 1/4”
Gases: AR, C, DL, H, HE, M, NH, NO, N,O, P and mixtures
Art. No. 5620 compressed air
Inlet pressure (bar) max. 40
Working pressure (bar) 0–20
Flow rate (Nm3/h) 20
