Art. 7820

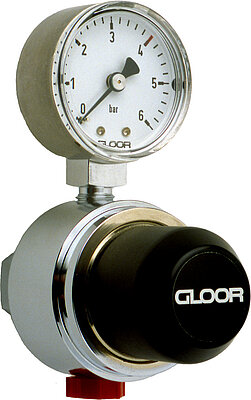

Low pressure regulator for high purity gases (6.0). Sintered filter in inlet. Pressure regulation through metal diaphragm. Working pressure fully variable as required from 0-1.5, 0–4, 0-6, 0-10 or 0–20 bar.
Also available combined with pipeline shut-off valve mounted on wall bracket as laboratory take-off station for one or two gases.
Download files
Technical Data
- Connection
at the rear ½“ internal thread union nut
- Outlet
downward, ¼" inner thread
- Media
AR, C, N, O, H and their mixtures
- Art. No. 7820 compressed air Inlet pressure
20 bar
- Working pressure
0–4 and 0–10 bar
- Flow rate
5/15 Nm3/h
