Art. 7991 / 7995
Back burning arrestor To protect central gas supply systems.
To protect the oxygen supply after the central pressure regulator
- 260 Nm3 /h at 15 bar at p = Pv Art.7991
- 800 Nm3 /h at 15 bar at p = Pv Art.7992

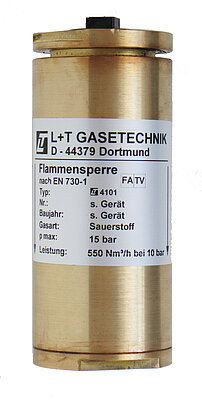

Main flame arrestor To protect the acetylene supply after the central pressure regulator.
- 15 Nm3 /h at 1,5 bar; p = Pv Art.7993
- 55 Nm3 /h at 1,5 bar; p = Pv Art.7994
Quick stop device Automatically cuts gas flow at acetylene decomposition within high pressure section.
- Pmax 25 bar Art.7995
- 70 Nm3 /h at 1,5 bar; p = Pv
Inlet and outlet threads Art.7992,7994,7995 G 1"
Art.7991,7993 G 1/2
