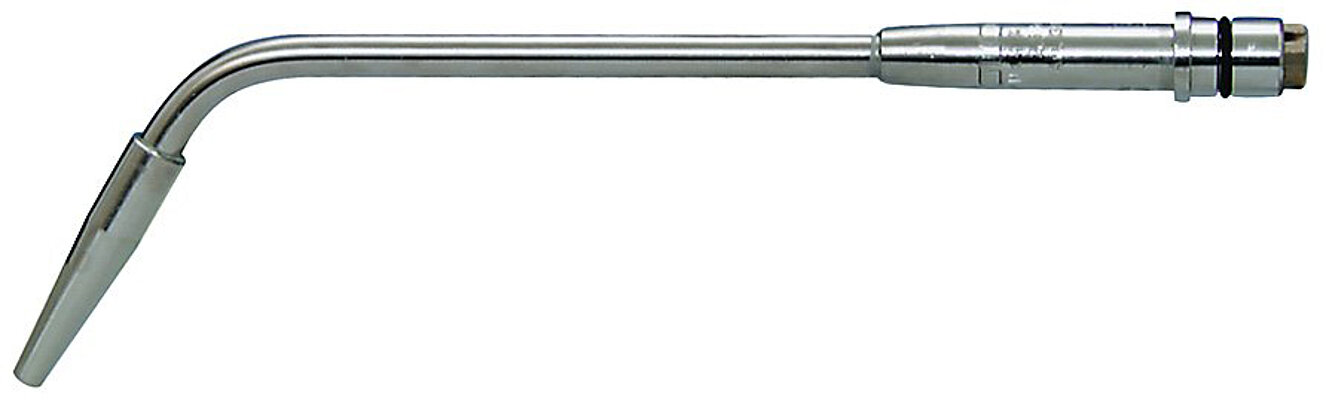

Art. 3911-P / Art. 3915-P
For soldering particularly the combintation oxygen/propane is used. Our soldering torches are however also available in versions for hydrogen/oxygen and natural gas/oxygen.
Download files
Products
- Art. 3911-P / Art. 3915-P
For general soldering work with propane/oxygen, for calorific value from
9‘700 to 38‘800 kJ/h, flame temperature max. 2830°C.
Soldering head No 1 Art. 3911-P
Soldering head No 2 Art. 3912-P
Soldering head No 3 Art. 3913-P
Soldering head No 4 Art. 3914-P
Soldering head No 5 Art. 3915-P
- Art. 3911-M / Art. 3915-M
For soldering work with natural gas/oxygen, for calorific value from
3‘100 to 13‘500 kJ/h, flame temperature max. 2785°C.
Soldering head No 1 Art. 3911-M
Soldering head No 2 Art. 3912-M
Soldering head No 3 Art. 3913-M
Soldering head No 4 Art. 3914-M
Soldering head No 5 Art. 3915-M
- Art. 3911-H / Art. 3915-H
For soldering work with hydrogen/oxygen, for calorific value from 2‘900
to 9‘400 kJ/h, flame temperature max. 2855°C.
Soldering head No 0 Art. 3910-H
Soldering head No 1 Art. 3911-H
Soldering head No 2 Art. 3912-H
Soldering head No 3 Art. 3913-H
- Art. 3932-P / Art. 3934-P
Flexible weldingheadsof soft copper for weldingareas which are difficult
to reach(e.g. pipe work),lengthapprox.. 230 mm
Flexible weldinghead 1 – 2 mm Art. 3932-P
Flexible weldinghead 2 – 4 mm Art. 3933-P
Flexible weldinghead 4 – 6 mm Art. 3934-P
The front sectionsof the flexible headsare alsoavailable separately:
to Art. 3932-P Art. 39402-P
to Art. 3933-P Art. 39403-P
to Art. 3934-P Art. 39404-P
- Art. 3965
Micro soldering/brazing headfor very fine precise soldering applications,
universallyadjustable, for oxy-fuel gas (with the exception of acetylene),
complete with 3 interchangeable needle-tips
- Art. 3960
Heating head with crown-shaped flame for propane/natural gas and
oxygen. The ideal torch head for the rapid melting of hot surfacing
alloys
- Art. 3940
Brazing head with ring-shaped flame for propane/natural gas and oxygen.
Proved brazing head with three interchangeable nozzles; very stable
flame for fine, medium and big size flames. Also suitable for the soldering
of chromium-cobalt alloys. Art. 3940
Nozzle No 1 Art. 3937
Nozzle No 2 Art. 3938
Nozzle No 3 Art. 3939
- Art. 3611-P / Art. 3618-P
To be used with handle 3601
Soldering head no 1 Art. 3611-P
Soldering head no 2 Art. 3612-P
Soldering head no 3 Art. 3613-P
Soldering head no 4 Art. 3614-P
Soldering head no 5 Art. 3615-P
Soldering head no 6 Art. 3616-P
Soldering head no 7 Art. 3617-P
Soldering head no 8 Art. 3618-P
- Art. 3632-P / Art. 3634-P
Flexible welding heads of soft copper for welding areas which are difficult
to reach (e.g. pipe work), length approx. 230 mm
Flexible soldering head 1 – 2 mm Art. 3632-P
Flexible soldering head 2 – 4 mm Art. 3633-P
Flexible soldering head 4 – 6 mm Art. 3634-P
The front sections of the flexible heads are also available separately:
to Art. 3632-P Art. 36402-P
to Art. 3633-P Art. 36403-P
to Art. 3634-P Art. 36404-P
