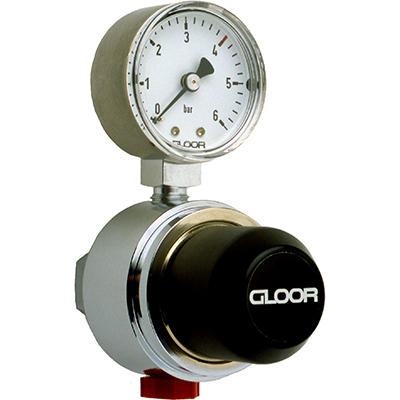

Art. 7820
Low pressure regulator for high purity gases. Particularly suitable as pipeline regulator. Pressure regulation through metal diaphragm. Working pressure continously variable up to 1.5, 4, 6, 10 or 20 bar. Sintered filter in inlet.
Download files
Technical Data
- Inlet pressure
max. 20 bar
- Working pressure
1.5, 4, 6, 10 or 20 bar
- Flow rate
5 Nm3/h or 11 Nm3/h
- Gases
all gases and gas mixtures with the exception of corrosive gases
- Inlet
at the rear ½“ internal thread union nut
- Outlet
downwards, internal thread G ¼“
- Construction
made of brass, outer parts chrome-plated sealing material : metallically sealing, diaphragm: metal with O-ring sealing
- Operating temperature
- 20° C to + 60° C
- Leakage rate helium
< 1x 10 E-7 mbar×1×s-1
- Weight
0,9 kg
