Art. 7822

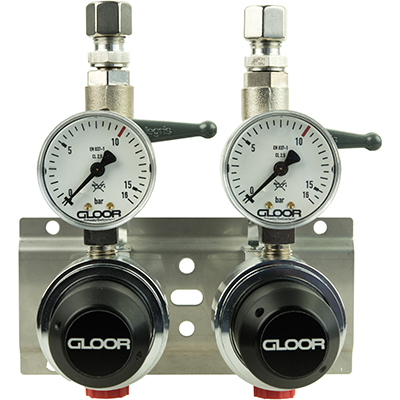

Take-off station for high purity gases. Available for one or two gases. Including pipeline shut-off valve(s) mounted on a bracket for wall-mounting. Inlet either from above or from below.
Download files
Technical Data
- Inlet pressure
20 bar max.
- Working pressure
1.5, 4, 6, 10 or 20 bar
- Flowrate
5 Nm3/h or 11 Nm3/h
- Gas
all gases and gas mixtures with the exception
of corrosive gases
- Inlet
either from above or from below, internal
thread union nut
- Outlet
downwards, internal thread ¼“
- Construction
brass chrome plated
Sealing material : metallically sealing
diaphragm : metal with O-ring sealing
- Operating temperature
- 20°C to + 60°C
- Leakage rate helium
< 1x 10 E-7 mbar×1×s-1
- Weight
2,8 kg
