Art. 5340

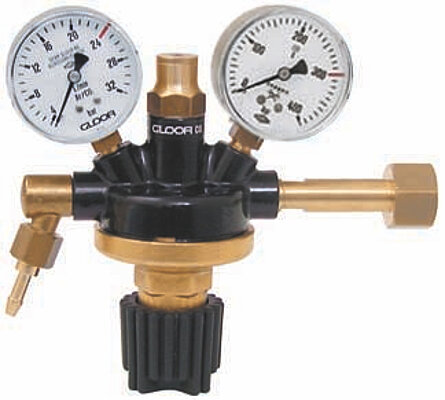

Pressure regulator with flow gauge, i.e. with indication l/min on secondary gauge. Integral safety valve. This pressure regulator is a cost effective alternative to Art.5150. With this system the flow is regulated by adjusting the secondary pressure and via a throttle valve in the outlet
Accessories: rubber protection for gauges in red, blue, black or grey Art.5120
Download files
Technical Data
- Connection
screw connector for cylinder (to ISO 5145)
- Outlet
hose connector 3/8”, 1/4”
- Gases
AR, C, N, NH, O, DL
- Inlet pressure
300 bar
- Working pressure
vraiable
- Flow rate
4–24/32 l/min (0–7.9 bar)
